In the previous article, we learnt about the Tensors and tensor dtypes. In this post we will learn about the tensor shapes.

Tensor Shapes


A TensorShape represents a possibly-partial shape specification for a tensor. It may be one of the following.

Fully-known shape tensor

Tensor with a Fully-known shape has a known number of dimensions and a known size for each dimension. e.g TensorShape([2, 4])


   import tensorflow as tf

   t1 = tf.constant([[1,2,3,4], [5,6,7,8]])
   t1.shape


tensor shape

Partially-known shape tensor

Tensor with a Fully-known shape has a known number of dimensions and a unknown size for one or more dimension. e.g TensorShape([4, None])


   import tensorflow as tf

   sample_list = [[1], [2,3], [4,5], [1,2,3,4]]

   t1 = tf.ragged.constant(sample_list)
   t1.shape


tensor shape

Unknown shape tensor

Tensor with a Unknown shape has an unknown number of dimensions and an unknown size in all dimensions. e.g TensorShape([None])


   import tensorflow as tf

   t1 = tf.RaggedTensorSpec(shape=(None,))
   t1.shape


tensor shape


Tensor Shape vs Rank

Tensor Shape represents the length of the each of the axes of tensor.


  import tensorflow as tf

  t1 = tf.constant([[[1,2,3,4],[2,3,5,4],[6,7,8,4]]])

  print(t1.shape)
  print("Length of axis 0 of tensor t1:", t1.shape[0])
  print("Length of axis 2 of tensor t1:", t1.shape[1])
  print("Length of last axis of tensor t1:", t1.shape[-1])


tensor shape


Tensor Rank represents number of axes in tensor.


  import tensorflow as tf

  t1 = tf.constant([[[1,2,3,4],[2,3,5,4],[6,7,8,4]]])

  t1._rank()


tensor shape

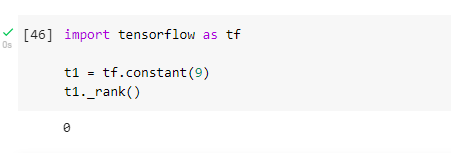

Scalar: A scalar is a rank-0 tensor and it has no axes.


  import tensorflow as tf

  t1 = tf.constant(9)
  t1._rank()


tensor shape

Vector: A vector is a rank-1 tensor and it has one axis.


  import tensorflow as tf

  t1 = tf.constant([1,3,4])
  t1._rank()


tensor shape

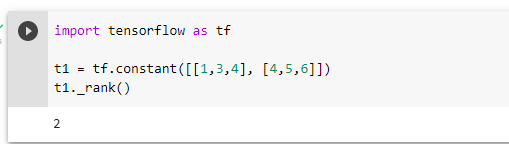

Matrix: A matrix is a rank-2 tensor and it has two axes.


  import tensorflow as tf

  t1 = tf.constant([[1,3,4], [4,5,6]])
  t1._rank()


tensor shape


Tensor Size

Tensor Size represents the total number of items in the tensor, that is the product of the shape vector's elements.


  import tensorflow as tf

  t1 = tf.constant([[1,3,4], [4,5,6], [3,5,6]])

  print("Shape of tensor t1 : ", t1.shape)
  print("Size of tensor t1 : ", tf.size(t1).numpy())


tensor shape
